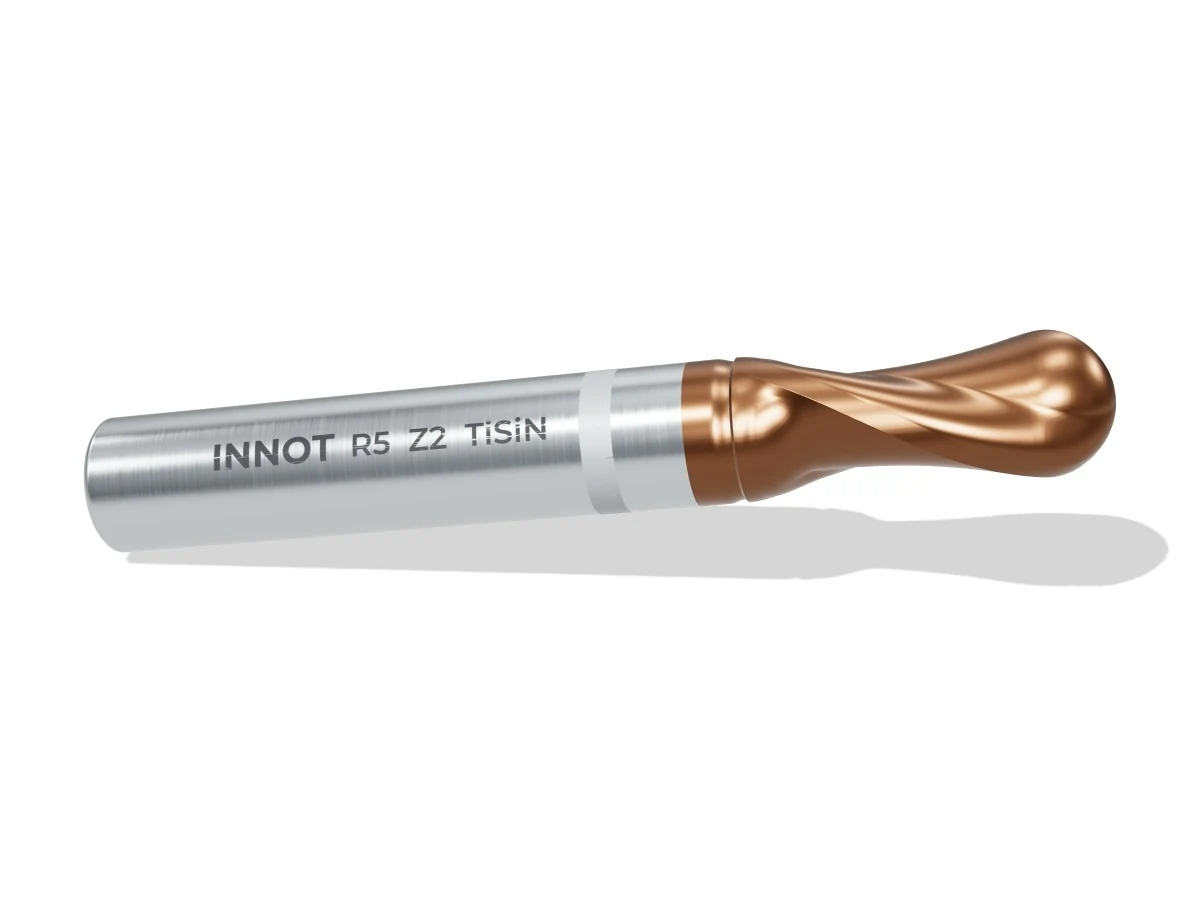

2-flute ball nose end mill

Full-radius end mill (R = D/2) for copy milling and finishing of moulds, free-form surfaces and 3D profiles.

ISO P

ISO K

ISO H

Ball nose (R = D/2)

Ø 1–20 mm

Prices reserved for companiesLog in to your customer area to see your prices and request new ones in one click.

Need technical advice? Talk to INNOT

(+39) 375 786 1361 Call · WhatsApp

Also custom made

Sizes, steps and geometries to drawing

Carbide and coatings

Rod and coating chosen for your material

Technical support

We help you choose geometry and coating

Shipping in 24/48 h

For stock orders throughout Italy

Description

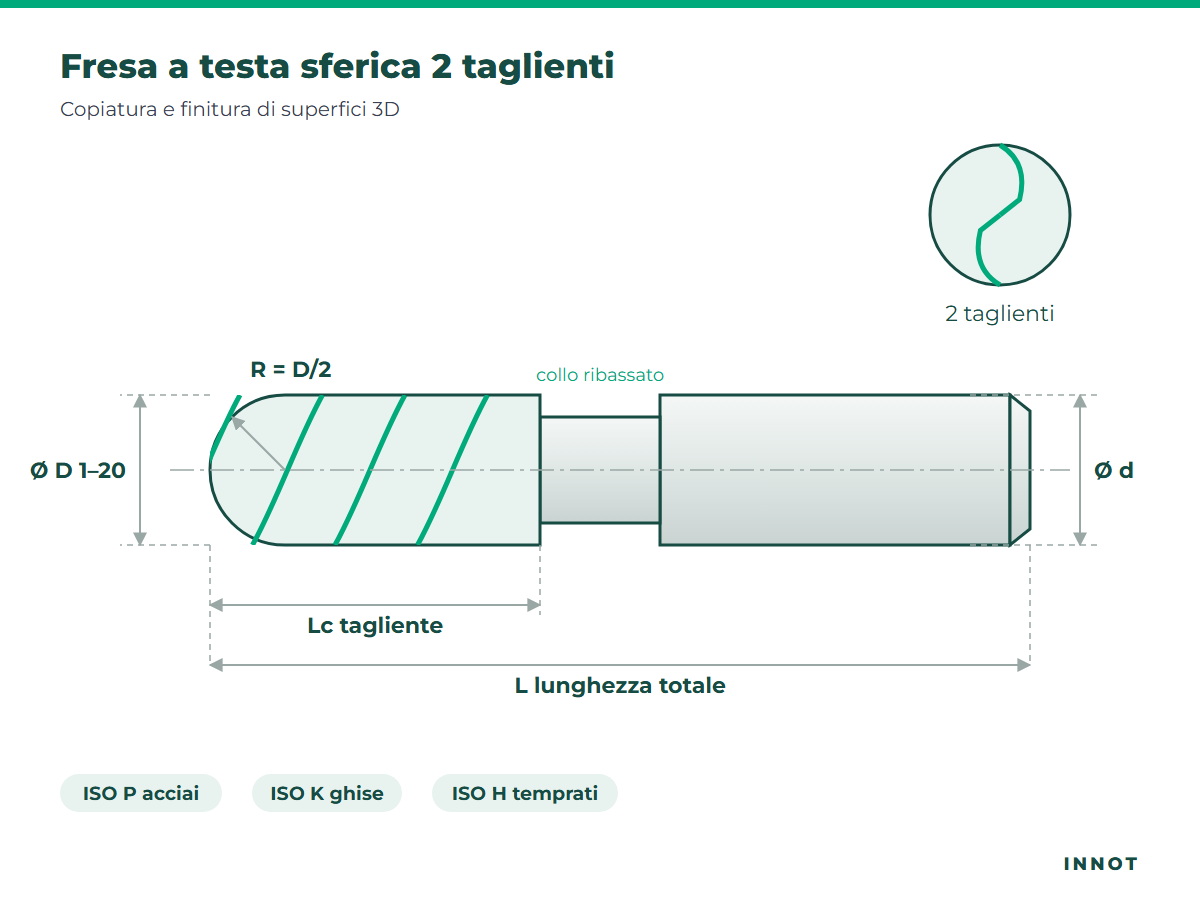

Technical drawing

Indicative dimensions: D = cutting diameter, Lc = cutting length, L = overall length, d = shank diameter. Exact dimensions are chosen at the quotation stage.

Features

Geometry	Ball nose (R = D/2)
Cutting edges	2
Diameters	Ø 1–20 mm
ISO materials	P (steels), K (cast irons), H (hardened steels)
Hardness / application	up to 54 HRC; hardened-steel version up to 65 HRC
Versions	Short or with reduced neck for deep moulds. Diameters from Ø1 to Ø20 mm. Also available with 6 flutes for roughing and finishing: 6-flute end mill.
Tool material	Coated solid carbide

Coatings and carbide

All coatings are available on this tool, also in custom versions:

TiNTiCNTiAlNAlTiNAlCrNTiSiNAlTiSiNAlCrSiNCrNZrNTiB2DLCta-CCVD diamondUncoated

Compare coatings and carbide grades →

Need a special size?

Diameter, cutting length, radius, reduced neck or number of flutes: configure the end mill and receive the quote within 30 minutes.

Configure your end mill

Printable cutting data tableAll the data on this page in an INNOT PDF to keep in the shop.Download PDF
