Milling Inserts

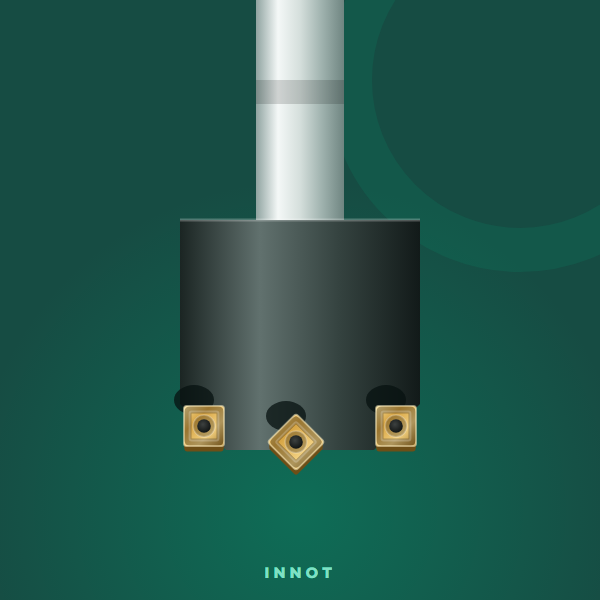

Face milling

Inserts for face mills: many cutting edges per insert (up to 16 on octagonal inserts), high removal rates and an excellent finish on flat surfaces.

8inserts
Family
AllFace milling90° square shoulderHigh feedCopy milling and profilingHelical cutters
Material
All materialsPSteelMStainlessKCast ironNAluminiumSSuperalloysHHardened
Filter

Showing all 8 results

Sort:
Show:
ODMT / ODKT
Add to wishlist
Compare

ODMT / ODKT

Available

Octagonal face milling insert with 16 usable cutting edges (8 per side): very low cost per edge and great stability.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling
SNGX-GM / SNGX-GE
Add to wishlist
Compare

SNGX-GM / SNGX-GE

Available

Double-sided square insert for face milling: 8 cutting edges per insert, universal GM geometry and GE for cast irons and interrupted cuts.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling
SEET / SEMT
Add to wishlist
Compare

SEET / SEMT

Available

Square insert for 45° face milling, with universal GM chipbreaker and FM for finishing.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling
SZMX
Add to wishlist
Compare

SZMX

Available

Double-sided square insert for high-removal face milling, with GM chipbreaker.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling · Roughing
SEKR / SEMR / SEEN
Add to wishlist
Compare

SEKR / SEMR / SEEN

Available

45° square insert for face milling: SEKR/SEMR in coated carbide, SEEN in cermet for finishing steels.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130 · ITC10
Read more
HHardenedPSteelKCast ironMStainlessFace milling · Finishing
HNMX / HNGX
Add to wishlist
Compare

HNMX / HNGX

Available

Double-sided hexagonal insert for face milling: 12 cutting edges, F (finishing), M (medium) and R (roughing) geometries.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling
XNMX / XNGX
Add to wishlist
Compare

XNMX / XNGX

Available

Double-sided heptagonal insert for face milling: 14 cutting edges, with dedicated W wipers for mirror finishing.

ISO P ISO M ISO K ISO S ISO H Face milling Face milling ★ IT6130 · IT8140 · IT5120 · IT5130 · IT7140
Read more
HHardenedPSteelKCast ironMStainlessSSuperalloysFace milling · Finishing
SNGX-ZNN / SNMX
Add to wishlist
Compare

SNGX-ZNN / SNMX

Available

Double-sided square insert for face and shoulder milling with APMX up to 8 mm.

ISO P ISO M ISO K ISO H Face milling Face milling ★ IT6130 · IT5120 · IT5220 · IT5130
Read more
HHardenedPSteelKCast ironMStainlessFace milling · Semi-finishing
INNOT guide

Face milling inserts

Face milling uses inserts with a 45° lead angle or double-sided inserts with many edges: SEET and SEMT at 45°, SEKR and SEMR, octagonal ODMT with 16 edges, heptagonal XNMX with 14, hexagonal HNMX with 12 and square SNGX with 8.

The 45° angle thins the chip and allows higher feeds; double-sided inserts reduce the cost per edge in series production on steel and cast iron.

See also90° square shoulderHigh feedCopy milling and profilingHelical cutters
Can't find the size or do you use another brand's code?Send us the code or the drawing: we reply with a quote within 30 minutes.
Request a quoteFind the equivalent
