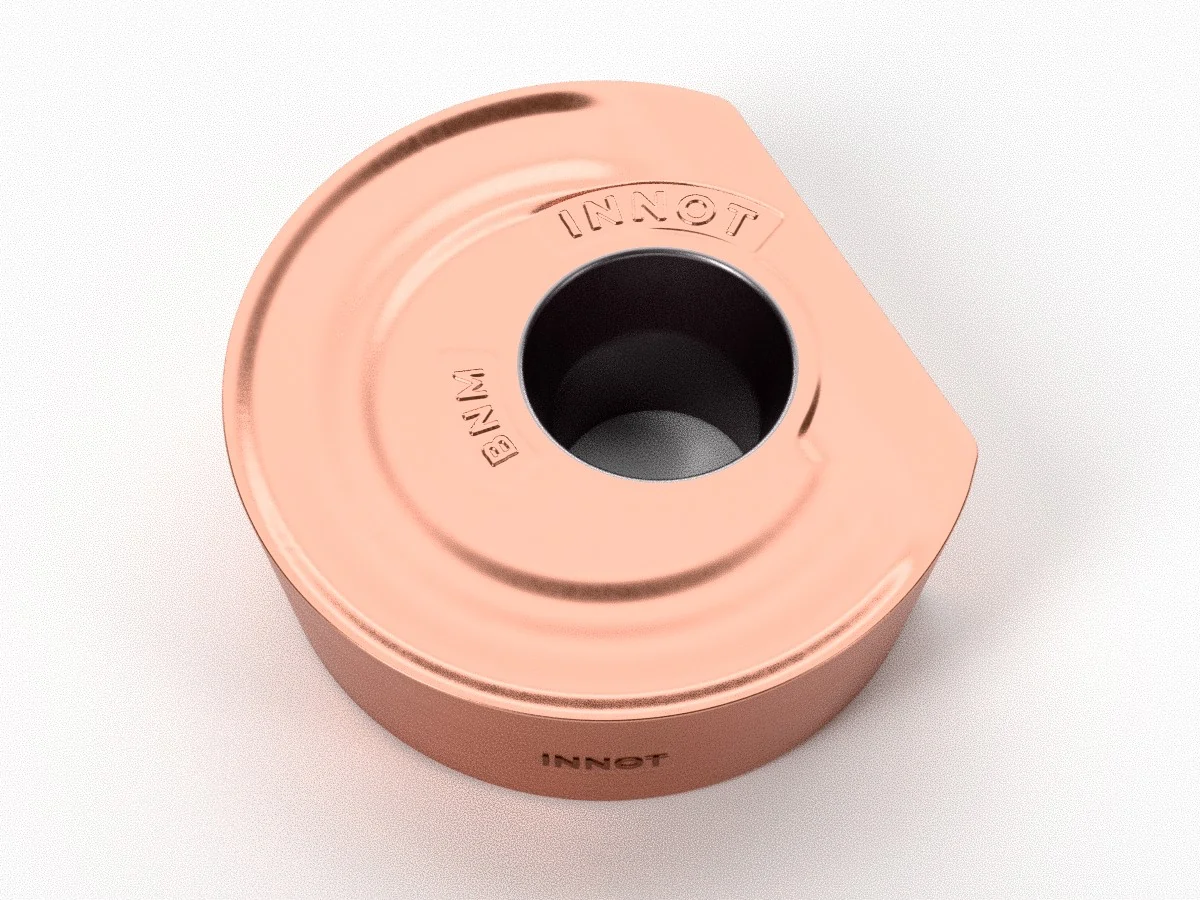

BNM (ball nose) – INNOT insert

BNM (ball nose)

Ball nose insert for copy milling cutters, from Ø12 to Ø32 mm, for finishing moulds and 3D surfaces.

ISO P

ISO M

ISO K

ISO H

Copy milling and profiling

Finishing

★ IT5210

Request a quote

Technical data sheet PDFCutting data, sizes and grades

Want to try it first? Request a free tester

Fits on
Copy milling cutters

Prices reserved for companiesLog in to your customer area to see your prices and request new ones in one click.
Sign in
Need technical advice? Talk to INNOT

(+39) 375 786 1361 Call · WhatsApp

INNOT grades

CVD, PVD and cermet for ISO P, M, K, S, H

Standard ISO designation

Compatible with the cutters you already use

Technical support

We help you choose geometry and coating

Shipping in 24/48 h

For stock orders throughout Italy

Categories: ,

Description

Specifications

Code Ø (W1) S D1 RE APMX
BNM1203-S 12 3 3.5 6 6
BNM1604-S 16 4 4 8 8
BNM2005-S 20 5 5 10 10
BNM2506-S 25 6 6 12.5 12.5
BNM3007-S 30 7 8 15 15
BNM3207-S 32 7 8 16 16
BNM2005 20 5 5 10 10
BNM2506 25 6 6 12.5 12.5
BNM3007 30 7 8 15 15
BNM3207 32 7 8 16 16

Dimensions in mm. IC = inscribed circle, S = thickness, D1 = hole, BS = wiper flat, RE = corner radius, AN = clearance angle, APMX = maximum depth of cut.

Technical data

Operation Milling – Copy milling and profiling
Shape Ball nose
ISO material P (steels), M (stainless steels), K (cast irons), H (hardened steels)
Features Full-radius insert for ball nose cutters: 3D profiles, moulds and free-form surfaces. -S version with chipbreaker.
Compatible cutters Indexable cutters with BNM seat: send us your cutter code and we will check compatibility.

Available INNOT grades

Grade ISO Coating Composition Application
IT5210 ★ P · H PVD AlTiN + TiSiN Milling of hardened steels 50–65 HRC. Coating with high thermal stability and oxidation resistance: withstands the most severe cutting temperatures.
IT5220 P · M · K PVD AlTiN + TiSiN Universal grade for steels, stainless steels and cast irons up to 40–50 HRC. Double-layer coating: strength, toughness and protection against edge chipping.
IT5130 P · M PVD AlTiN High-efficiency milling of steels and stainless steels below 30 HRC. Specially formulated substrate that reduces the risk of chipping, with a latest-generation nano coating.

★ Recommended grade. Other grades are available on request.

Cutting data and tips for use

Preferably climb mill with the tool tilted by 10–15° to avoid cutting with the insert centre (zero speed).

Printable cutting data tableAll the data on this page in an INNOT PDF to keep in the shop.Download PDF
